Configure induction hob

Make sure your Ztove induction hob and Ztove cookware is running the latest firmware version. Read more about updating the firmware on Updating firmware.
Use Menu  Factory reset to revert to default settings.

The settings to configure the induction hob can be found by accessing the menu when no zones are selected. Then the induction hob settings can be found at Menu  Configure induction hob.

Language

  • English (default)

  • Danish

  • Swedish

  • Norwegian

  • German

  • Finnish

Volume

Controls the volume of the beeps from the induction hob. Possible settings are:

  • Low

  • Medium (default)

  • High

Zone selector timeout

When selecting a zone using the zone selectors, the Ztove induction hob will automatically deselect the zone after the given timeout.

  • 10 s

  • 15 s (default)

  • 30 s

  • 45 s

  • 60 s

  • Off

Show power indicator

By default, when using Ztove cookware it is not possible to see the selected power limit when the zone is not selected. Enabling the power indicator adds an indicator to the home screen that always shows the selected power limit.

power indicator

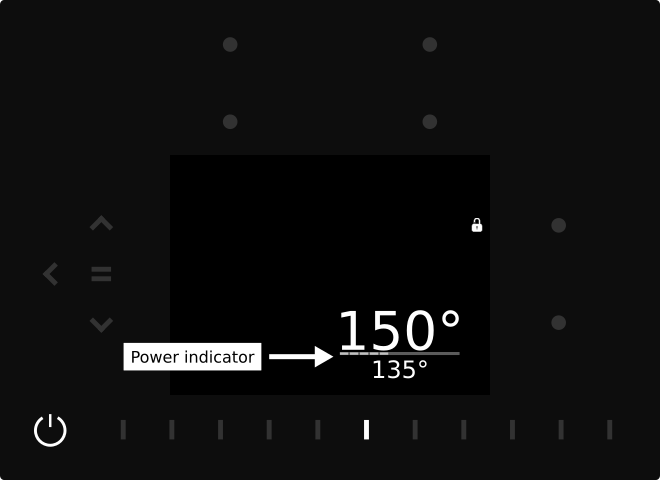

Figure 1. An example of having the power indicator enabled.

Slider press behavior

This setting controls what happens when the slider is pressed. When the slider is used to adjust the temperature setpoint and power limit for Ztove cookware, it is possible to press the slider to achieve a single beep and a double beep.

The default behavior is:

  • Single beep

    • Change power limit on zone

  • Double beep

    • Change temperature setpoint from 20°C to 220°C

This setting allows the user to switch this behavior.

The possible options are:

  • Set power first (default)

  • Set temperature first

Show slow heating warning

If a low power limit has been selected and the temperature setpoint has been set to something very hot, then Ztove may take a very long time to reach the temperature setpoint. If this happens then Ztove will alert the user with a "Slow heating warning" that prompts them to select a higher power limit. However, some users may intentionally choose a lower power limit. This setting allows the user to select if they want to see "Slow heating warning" or not.

Possible options are:

  • Yes (default)

  • No

Default fan mode (ZIGD804 only)

Choose if the fan should be in manual mode or auto mode by default.

Possible options are:

  • Auto

  • Manual (default)

Fan strength (ZIGD804 only)

This setting controls how aggressive the automatic fan mode is. Depending on the length of the fan ducting among other factors, the fan strength should be adjusted to achieve the right amount of suction.

Possible options are:

  • Low

  • Medium (default)

  • High

Fan timeout (ZIGD804 only)

Use this setting to have the fan run for an additional amount of time after cooking to help remove any remaining odors.

This settings controls how long the fan will run when no cooking is happening. This applies both to the automatic and manual fan mode. The Ztove induction hob will automatically turn off after the fan stops running.

Possible options are:

  • Off (The fan stops immediately)

  • 2 minutes

  • 5 minutes (default)

  • 10 minutes

  • 15 minutes

Hob has carbon filter (ZIGD804 only)

Set this setting to (Yes) if your ZIGD804 hob is installed with a carbon filter. The Ztove Induction hob will automatically track the usage of the fan and notify the user when it is time to change the carbon filter.

Possible options are:

  • No (default)

  • Yes
